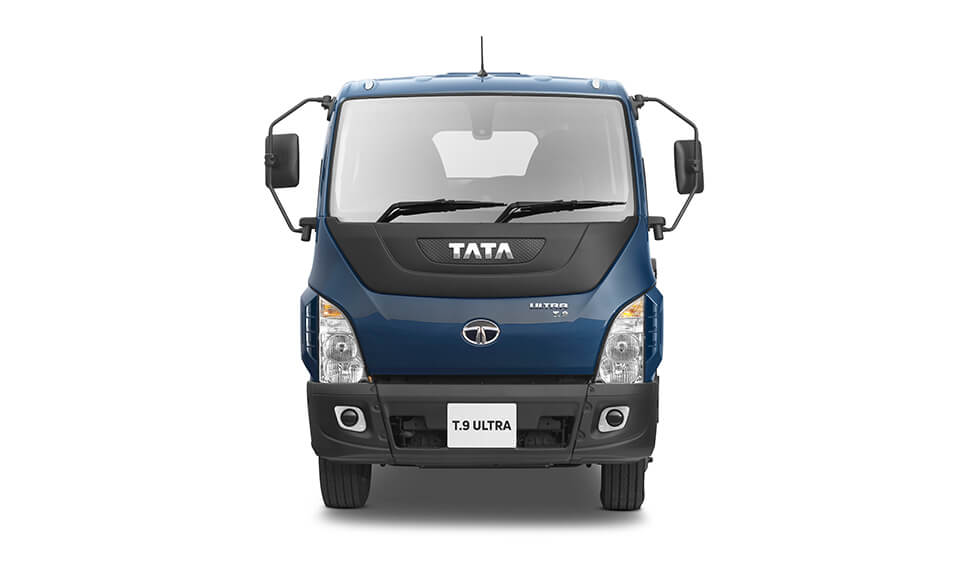

TATA ULTRA T.9

The Tata Ultra range offers sleek and modern truck choices customized for urban transportation requirements. Engineered to navigate through narrow spaces effortlessly, these trucks maintain efficiency even in congested traffic conditions.

9150 Kg

GVW

74.5 kW (100 Ps) Light Mode | 92 kW Heavy Mode (125 Ps) @ 2800 r/min

Power

4SPCR BSVI Ph2

Engine

Enquire Now Contact Dealer Book Now

Brochure

Overview
Specification
Gallery

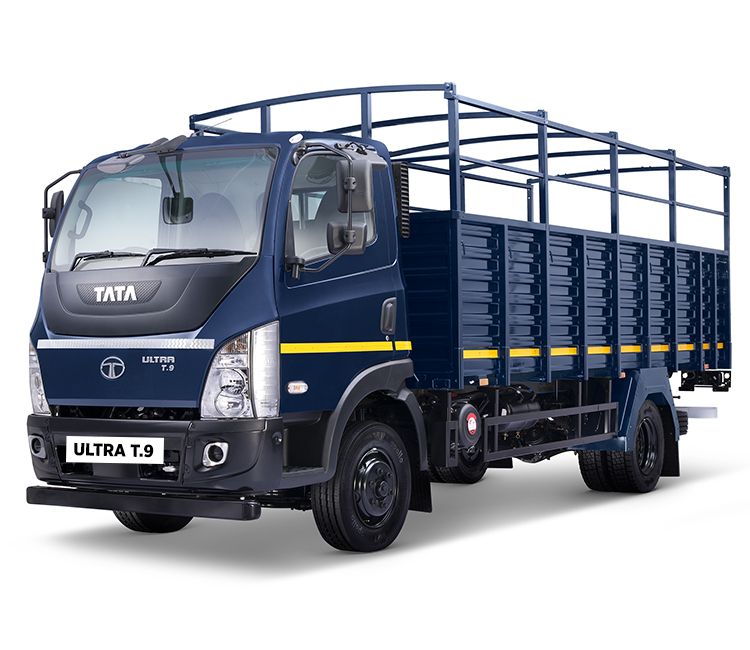

TATA ULTRA T.9

Tata Ultra features a powerful 4 SPCR engine, paired with a G400 DD 5-speed gearbox. With safety features such as the Reverse Parking Buzzer and Gear Shift Advisor, it offers unmatched reliability for businesses.

Engine

4SPCR BSVI Ph2

Torque

360 Nm @ 1400 - 1800г/min (Light Mode) | 300 Nm @ 1000 - 2 200 г/min (Heavy Mode)

Fuel Tank

90 L HD Polimer Fuel Tank

Tyres

750R16 - 16PR Low CRR Tyre (Front-2 / Rear - 4)

Warranty

3 year or 300000 km

Applications

Cement, Building Construction, Parcel & Courier E Commerce, Pharma, Fruits & Vegetables, FMCG, LPG Cylinder, Food Grains, Industrial Goods, Container & Reefers, White Goods

Superior TCO

Hill hold Assist (Hyd) for ABS/non ABS vehicle

FE Switch
Gear Shift Advisor
E Viscous Fan/Viscous
Driveline optimisation (Mark II for G550)
Low CRR Tires Phase 2
H-Grade (Low synthetic oil)

Music System + Bluetooth + Handsfree enabled
High Speed USB port charger
Telematics (Connectivity)-4G
Anti Fuel Theft provision on fuel tank
FOTA (Firmware over the Air flashing)
GDCU-Gateway Domain Control Unit
Fleet management APP with MVP1,2

Unitized Bearing Frt Axle
Unitized Bearing Rear Axle
Long drain oil interval

Engine

Engine	Engine
Type	4SPCR BS6 PH2
Power	Power
Torque	Torque
Fuel Type	Diesel
Fuel tank capacity	90 L

Transmission

Gear Box	GBS 550
Clutch	Clutch
Rear Axle	Rear Axle

chassis

Wheelbase (mm)	Wheelbase (mm)
Deck Length	Deck Length
Tyre	Tyres
Front Suspension	Parabolic Suspension with rubber bush and Hydraulic double a
Rear Suspension	Semi-Elliptical Leaf Springs with parabolic auxiliary
Brake Type	Air Brake
Gradeability (%)	20.20
