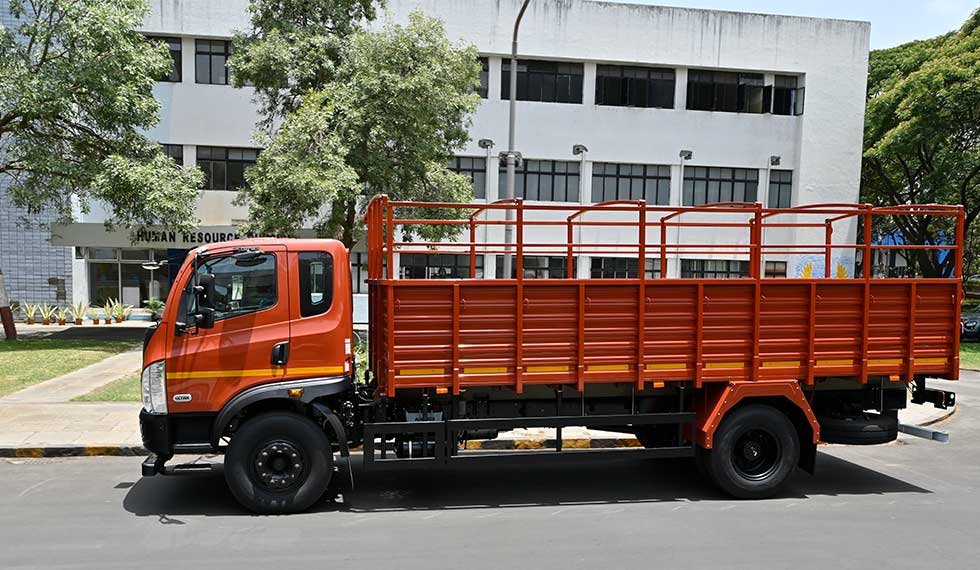

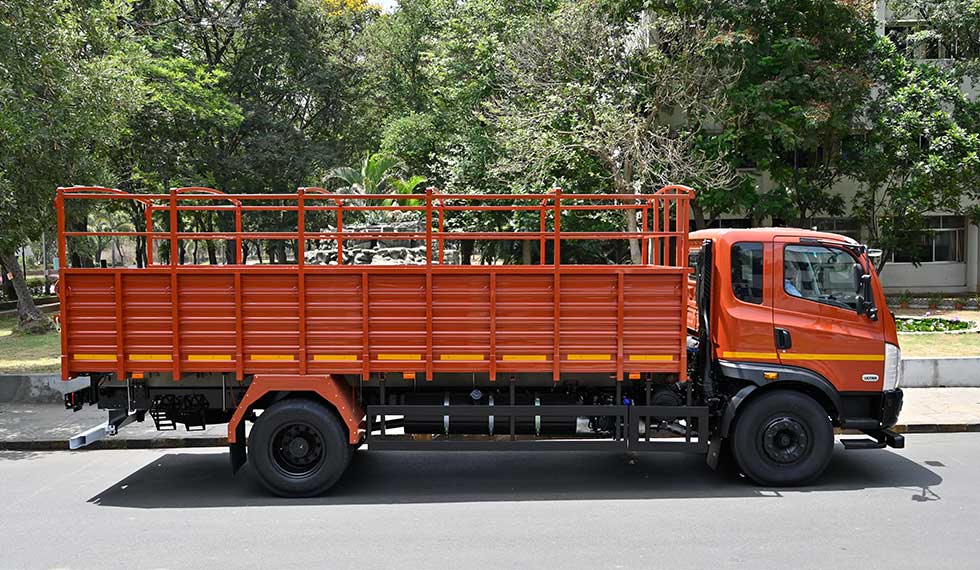

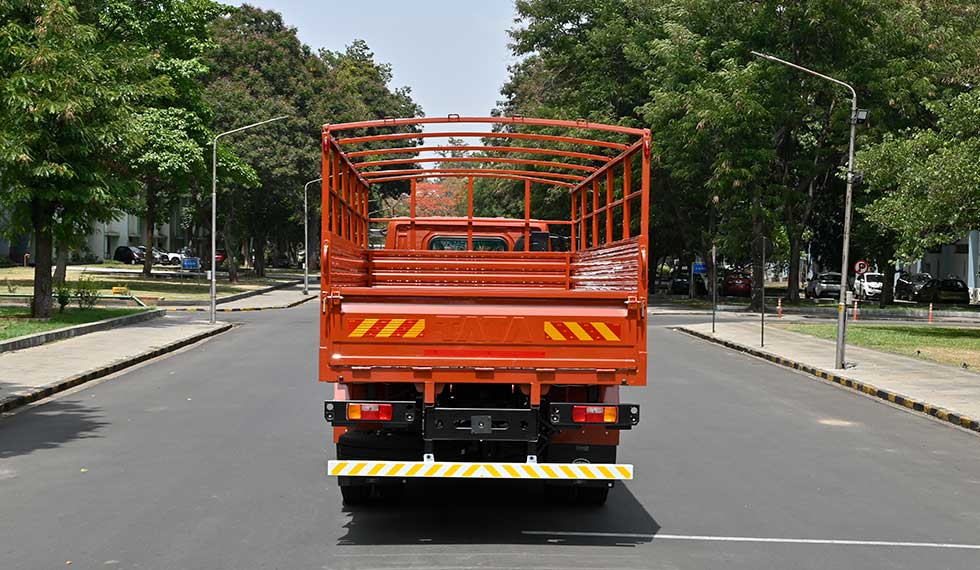

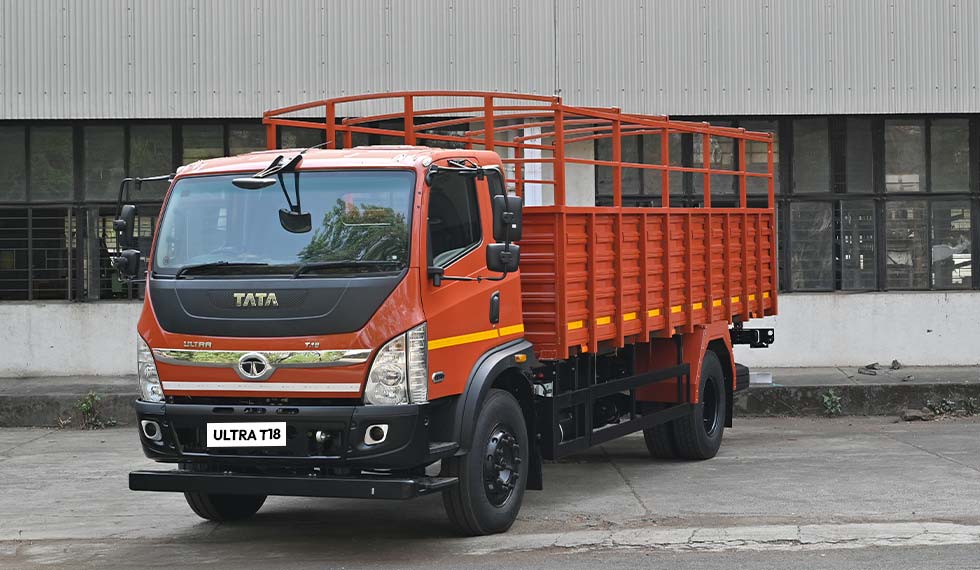

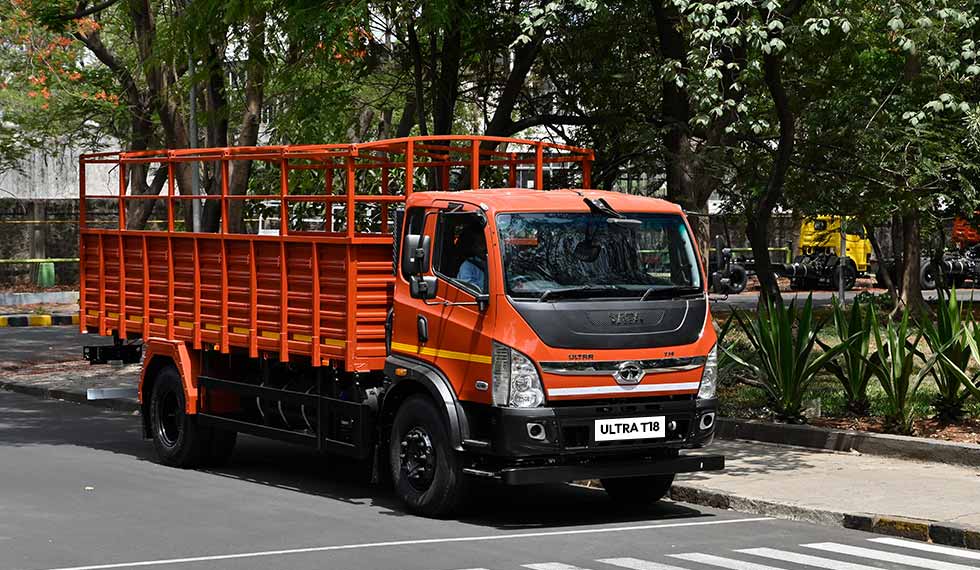

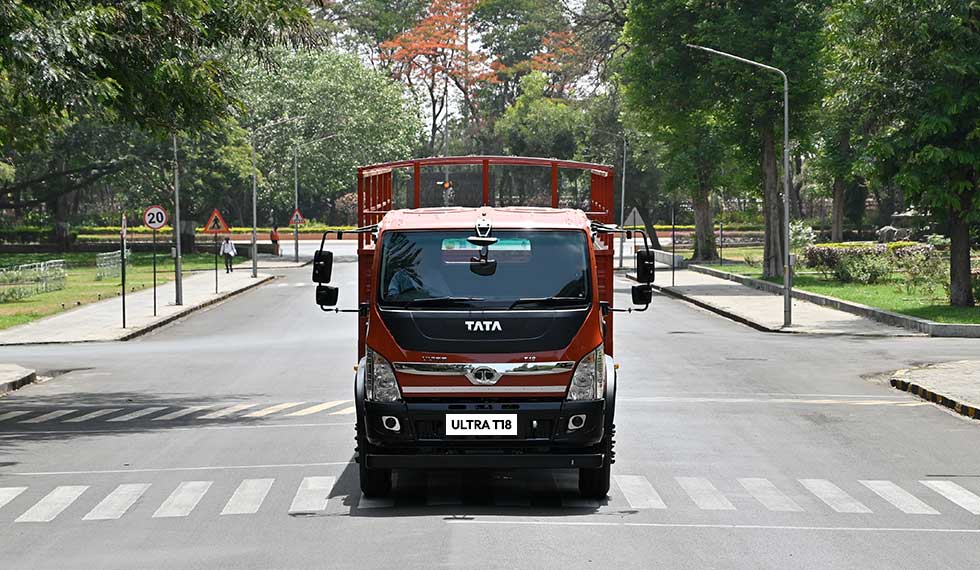

TATA ULTRA T.18

Built on the world-class Ultra Sleek platform, the Tata Ultra is developed to meet the evolving needs of Indian logistics and distribution. Developed to delight both fleet owners and the driving fraternity, it ensures low operating costs and best-in-class comfort & convenience.

20000 Kg
GVW
132 kW (180Ps) @ 2200 r/min
Power
5L NG BS6 Engine
Engine
6170 mm
Deck Length

TATA ULTRA T.18

Tata Ultra is equipped with a 5L engine to deliver the best-in-class cabin, exceptional load carrying capacity, ergonomically designed seats, and unmatched safety.

Engine
5L NG BS6 Engine
Speed
Torque
700 Nm@1000-2000 r/min (Normal Mode) | 590 Nm@1000 - 2000 r/min (Eco Mode)
Fuel Tank
250 L
Tyres
Radial 295/90R20 (Front 2, Rear 4, Spare 1) Low CRR Phase 2
warranty
Warranty
3 Years / 3 Lakh Kms
application
Applications
Fruits & Vegetables, Cement, Industrial Goods, LPG Cylinder, E-Commerce
Overall Height (mm) 2630 mm
Warranty 3 years or 300000 km, Whichever is earlier*
Telematics Yes
Brake Type Air Brake
Front Suspension Parabolic Leaf Spring
Rear Suspension Semi-Elliptical Leaf Springs with parabolic auxiliary
Rear Tyre 295/90R20 Tube Tyre
Front Tyre 295/90R20 Tube Tyre
No. of Wheels 6
Load Body Dimension L - 6170, W - 2286, H - 1830
Load Body Type CBC
Load Body Length 6170 mm
Overall Length (mm) 9090 mm
Max Power 180 PS @ 2250 RPM
Overall Width (mm) 2440 mm
Wheelbase (mm) 4920 mm
GVW / GCW (Kgs) 17500 Kg
Gearbox G750 6 Speed
Clutch Type Single plate dry friction type hydraulic assisted
Fuel Type Diesel
Fuel Tank Capacity (Litres) 250 L
Gradeability (%) 24.8
Engine Cylinders 4 Cylinders
Engine Type New 5NG BS6 Engine
Emission Norms BS6 PH-2
Max Torque 700 Nm @ 1000-1700 rpm
