TIPPERS
TATA SIGNA 4830.TK. FBV
47500 Kg
GVW224 kW @ 2300 r/min
PowerCummins 6.7L OBD-II
EngineNA
Deck LengthSIMILAR VEHICLES

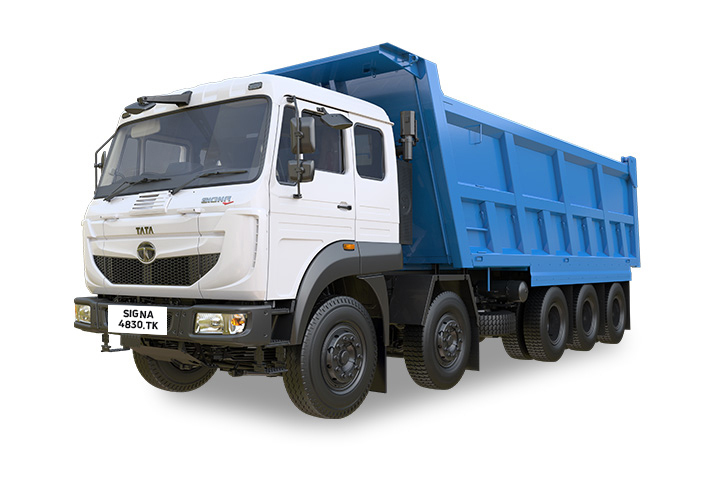

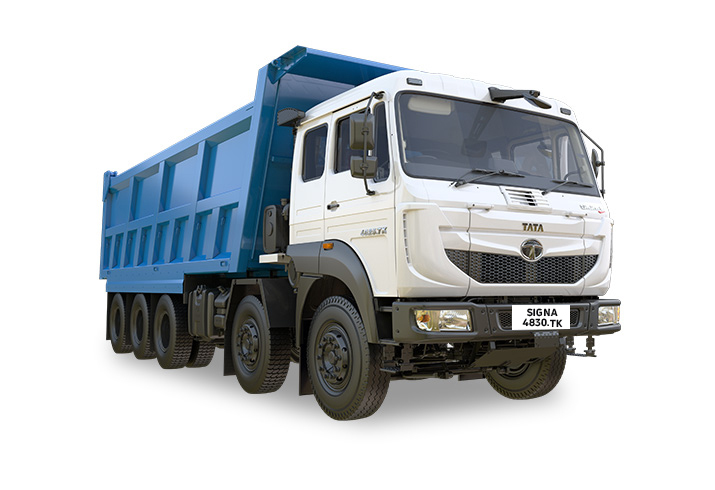

TATA SIGNA 4830.TK. FBV
Equipped with Cummins 6.7 L engine, the Tata Signa 4930.T delivers an impressive torque of 1100 Nm@1100-1700 RPM. Its intelligent design ensures fatigue-free operation during long hauls, enhancing overall productivity and efficiency.
Engine
Cummins 6.7L OBD-II
Torque
1100 Nm @ 1100-1700 RPM
Fuel Tank
Diesel
Tyres
295/90R20
Warranty
6 Years/ 6Lacs Kms
Applications
Coal Mining, Construction Aggregates, Iron Ore
| Load Body Length | 17 Ft |
| Front Suspensionns | Parabolic leaf spring suspension |
| Warranty | 6 Years/ 6Lacs Kms |
| Telematics | Yes |
| Rear Suspension | Bell Crank / Bogie |
| Rear Tyre | 295/90 R20 |
| Front Tyre | 295/90 R20 |
| No. of Wheels | 16 Wheels |
| Seating Capacity & Layout | D + 2 |
| Load Body Dimension | 5218 x 1962 x 1812 |
| Load Body Type | HSD |
| Max Power | 224 kw @ 2300 RPM |
| Gearbox | G1150 |
| Clutch Type | 430 mm Single Plate dry frictional Push Type |
| Fuel Type | Diesel |
| Fuel Tank Capacity (Litres) | 300 Litres HDPE |
| Gradeability (%) | NA |
| Engine Cylinders | 6 Cylinders |
| Engine Type | Cummins 6.7L OBD-II |
| Emission Norms | BS6 |
| Max Torque | 1100 Nm @ 1100-1700 RPM |
-
-
