TIPPERS

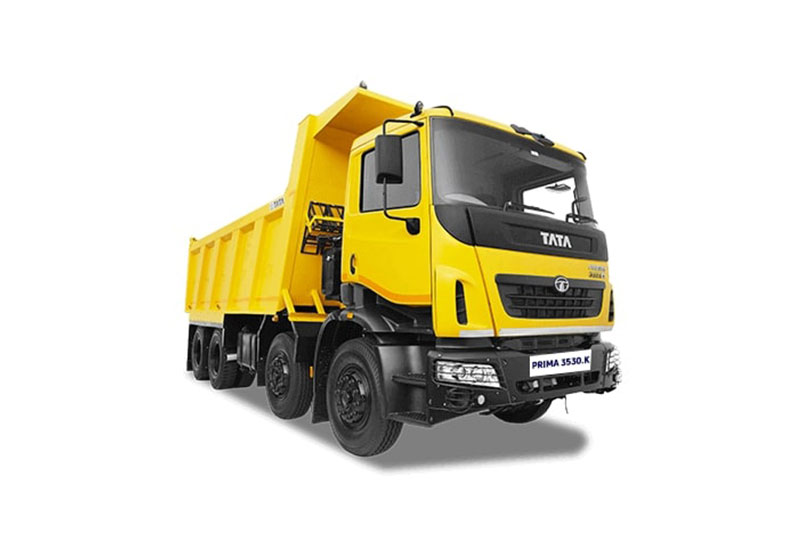

TATA PRIMA 3530.K SRT

The TATA PRIMA 3530.K is designed and built for versatility, high productivity and continuous operation.

35000 Kg
GVW
224 kW @ 2300 r/min
Power
Cummins 6.7L OBD-II
Engine
NA
Deck Length

TATA PRIMA 3530.K SRT

Engine
Cummins 6.7L
Speed
Torque
1100 Nm@ 1100 - 1700 r/min
powerfhouse
Fuel Tank
300 liters / 300 liters Twin Fuel Tank
Tyres
295/90R20
warranty
Warranty
6 Year
application
Applications
Cements, Industrial Goods, Tanker, Ore & Minerals, Steel, Coal
Wheelbase (mm) 52WB
Hill Hold Yes
Brake Type Drum
Telematics Available
A/C AC
Front Suspension Leaf Spring
Rear Suspension BOGIE / ULTIMAX
Rear Tyre Single Reduction Heavy Duty Rear Axle With Differential Lock
Front Tyre Heavy Duty Forged I Beam Reverse Elliot Type
No. of Tyres 12 Tyres
Max Power 224kW@2300 r/min
GVW / GCW (Kgs) 35000 kg
Gearbox TATA G1150
Clutch Type 430 mm Dia Push type Single Plate Dry Friction Organic Linin
Fuel Type Diesel
Fuel Tank Capacity (Litres) 300L HDPE
Gradeability (%) NA
Engine Type Cummins 6.7L OBD-II
Emission Norms BS6 OBD II
Max Torque 1100 Nm@1100-1700 RPM
